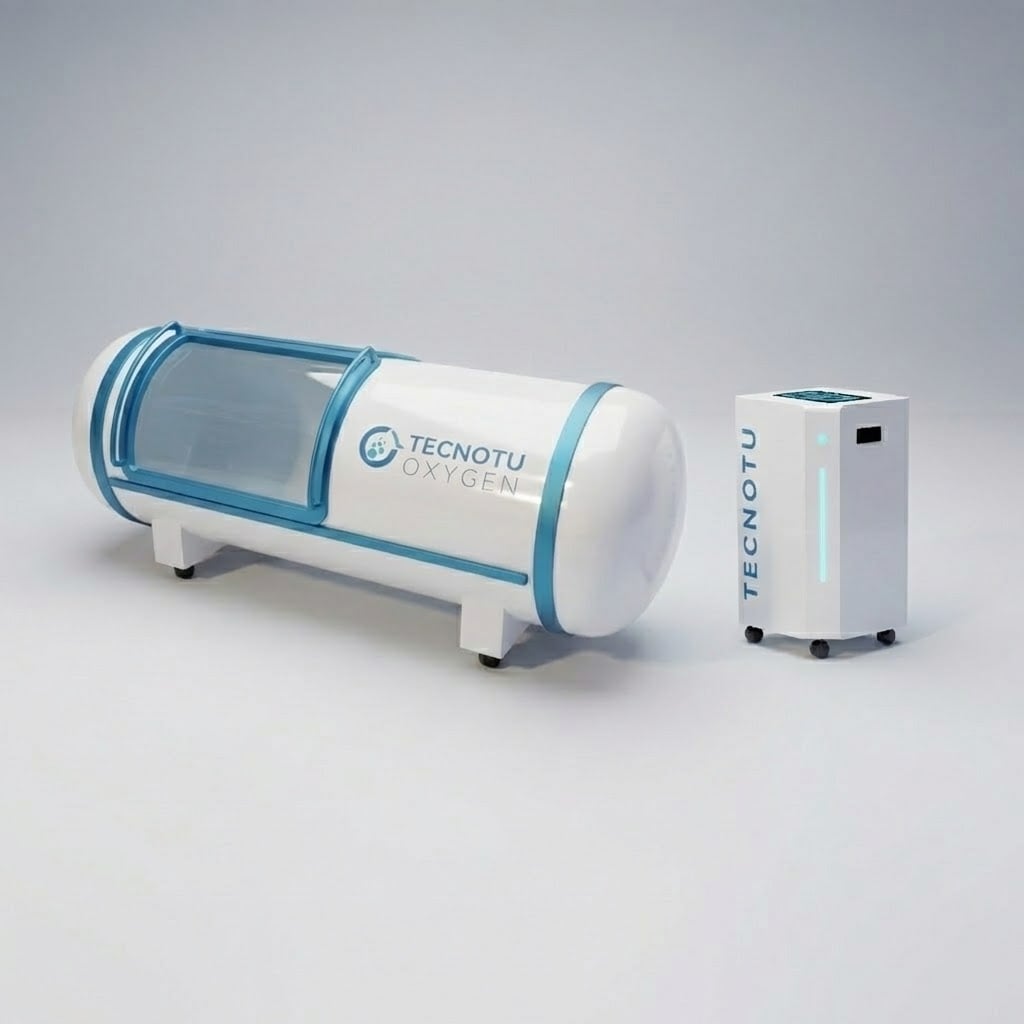

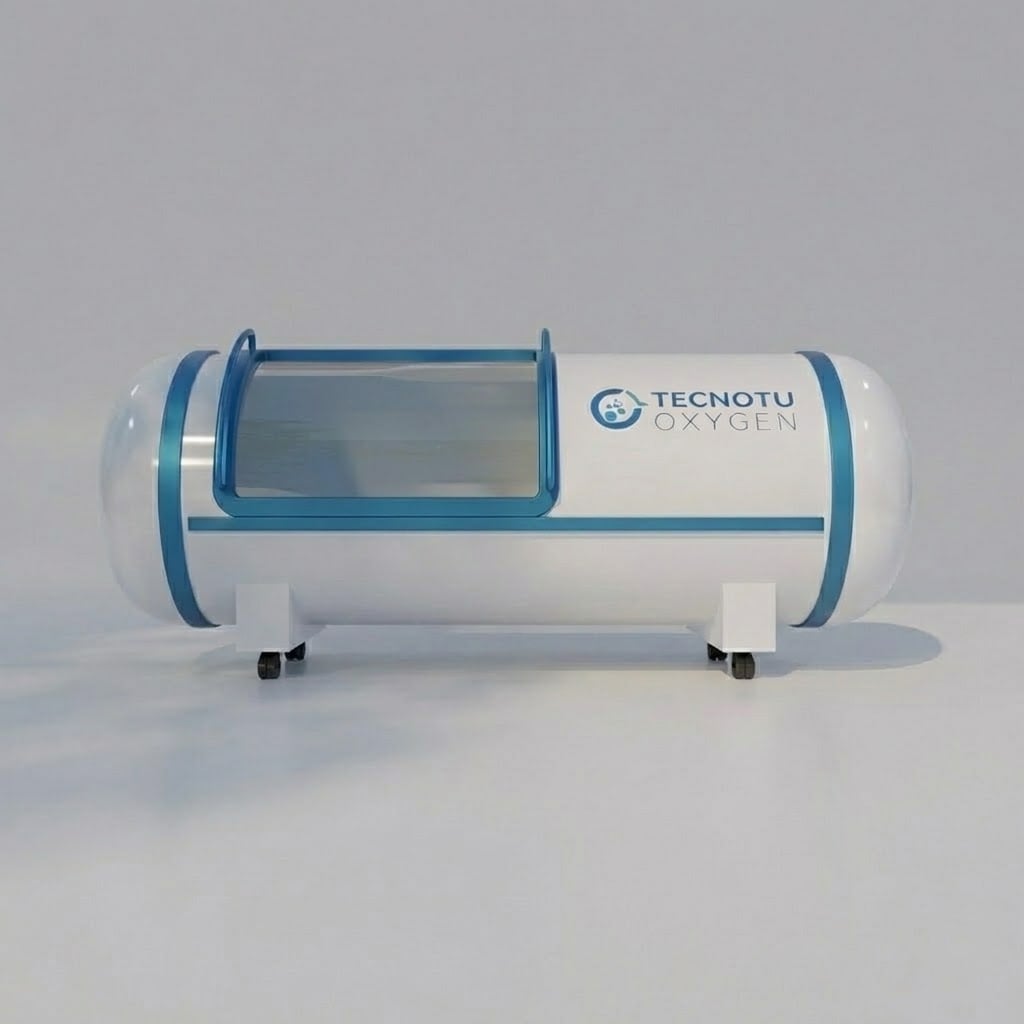

The Tecnolay Ultra Hard shell Hyperbaric Chamber combines performance, safety, and ease ofuse for a superior HBOT experience.
- Chamber Type: Single Hard-Shell Lying Chamber
- Operating Pressure: 1.3 -2.0 ATA
- Oxygen Concentrator: 15 L/Min ,180 L air
The hard-shell hyperbaric chamber supports pressures from 1.1 to 2.0 ATA (10-100 kPa) and is designed for single-person use. Its interior dimensions are 220 cm (length) x 80 cm (width). The stainless steel housing weighs 485 lbs (220 kg) and has a maximum load capacity of 550 lbs (250 kg). The integrated system weighs 155 lbs (70 kg) and has an oxygen flow rate of 15 liters/minute and an air flow rate of 180 liters/minute. Required installation space: 118 inches (width) x 59 inches (depth). Quality and performance are certified to ISO standards..
Advantages
- Aerospace-grade Stainless Steel
- Dual 10-inch true color touchscreens
- Negative ion air purification
- Air filtration and disinfection function
- Transparent viewing window
- Monitors ambient pressure, gauge pressure, temperature, and humidity
- Offers rapid pressurization, conventional pressurization, and pure oxygen modes
- Adjustable pressure, compliant with the new 2.0 ATA standard.
- Automatic air and oxygen control system
Specifications
- Display Screen and Control Board
- Oxygen flow: 15 L/min
- Air flow 180 L/min
- 2 Automatic exhaust valves
- 1 Emergency rotary exhaust valve
- 1 Emergency button exhaust valve
- 5 Inlet ports. 2 ponge muffler
- Dual Gauges
- 1 Cold dryer
EMERGENCY STOP BUTTON
Peace of mind control: Terminates session in the pressure room if needed, and quickly drops chamber pressure to a safe level.
EMERGENCY DECOMPRESSION VALVE
In case of emergency, the pressure chamber is relieved by rotating the manual spherical valve from inside or outside the chamber.
