Black tempered glass

Minimalist high-end fashion

AI, SMART VISUAL 1080P CAMERA


Ultrasonic sensor

50k Hz Center Frequency, 5mm Measurement Accuracy

Curve

Horizontal wave sensor

Balance-Assessment

A high-precision horizontal Angle sensor is used to measure the shaking amplitude of the human body and evaluate the strength of the balance ability. This evaluation directly reflects the muscle development and control status, and provides scientific data support for subsequent training.

Physical Risk Assessment

  • High and low shoulders
  • X/O legs
  • Hunchback
  • Pelvis tilted forward

A5 is your total health companion



Medical grade



Blood Oxygen

Blood oxygen

One minute resting heart rate and blood oxygen concentration are measured to assess the strength of cardiopulmonary function, providing accurate data support for daily training intensity planning.

Blood Pressure

Blood pressure measurement

Medical-grade blood pressure measurement to monitor exercise risk. Eliminate high blood pressure, women's menstrual exercise risk, make exercise more comfortable

TECHNICAL SPECIFICATIONS & FEATURES

What the Machine tells you:

User ID Login/Phone Number Login On Screen Results
Printable Results Handle Grips
Height Weight
BMI Body Fat Percentage
Muscle Mass Visceral Fat Area
Subcutaneous Fat Area Protein Content
Total Body Water Skeletal Muscle
BMR(kcal) Obesity Degree (%)
Desirable Weight Weight Control
Fat Control Muscle Control
Segmental Muscle Segmental Body Fat
Body Type Classification Balance Test
lung Capacity Test Fat-Free Body
Bone Mass WHR
Body Age SpO2 %
Blood Pressure Test Exercise Intensity
Vision Test Body Posture Analysis
Total Energy Expenditure (kcal) Calorie Consumption (kcal/hour)
Expected Fat Burning (kg) Target Body Fat
Exercise Program Advice Estimated Completion Period
Body Composition History Pervious Data Comparison
Responsiveness Test

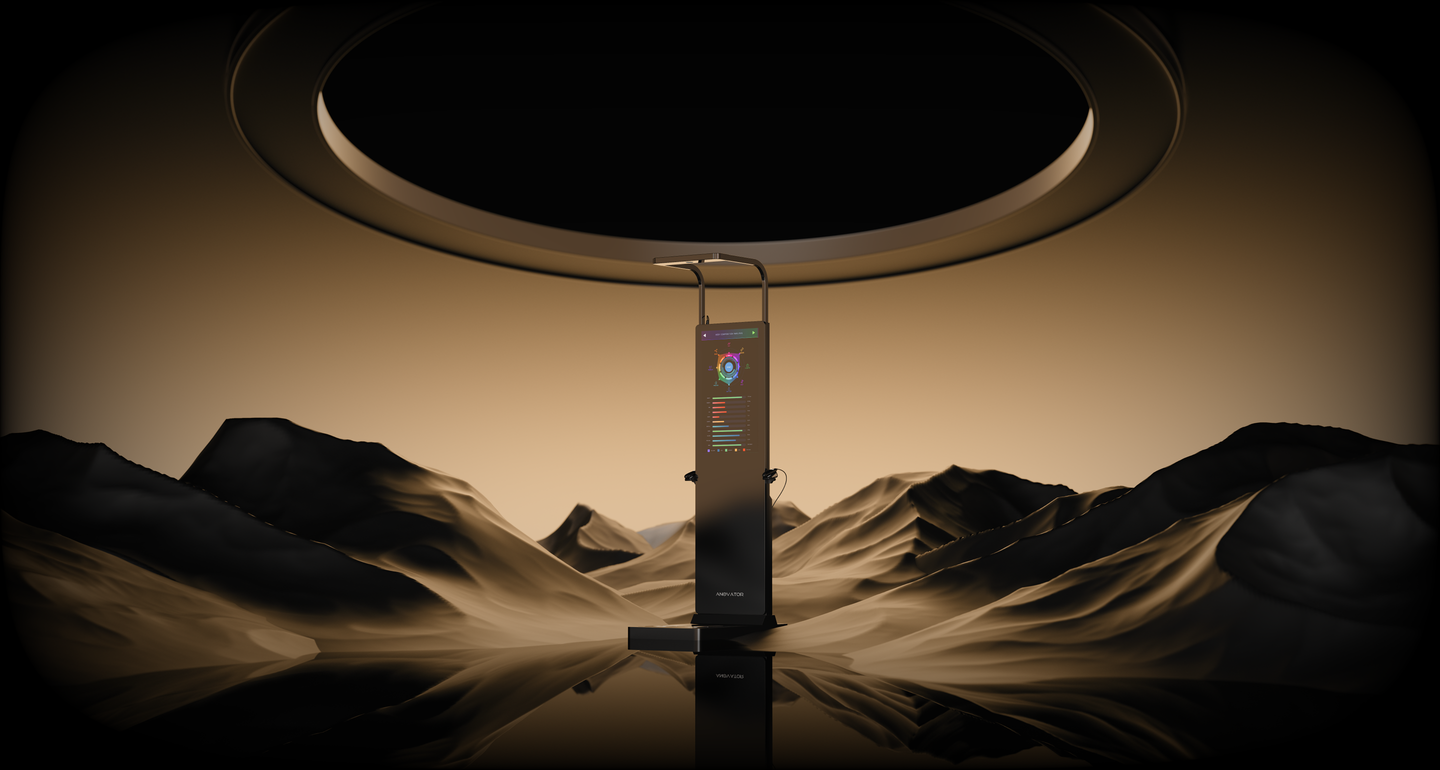

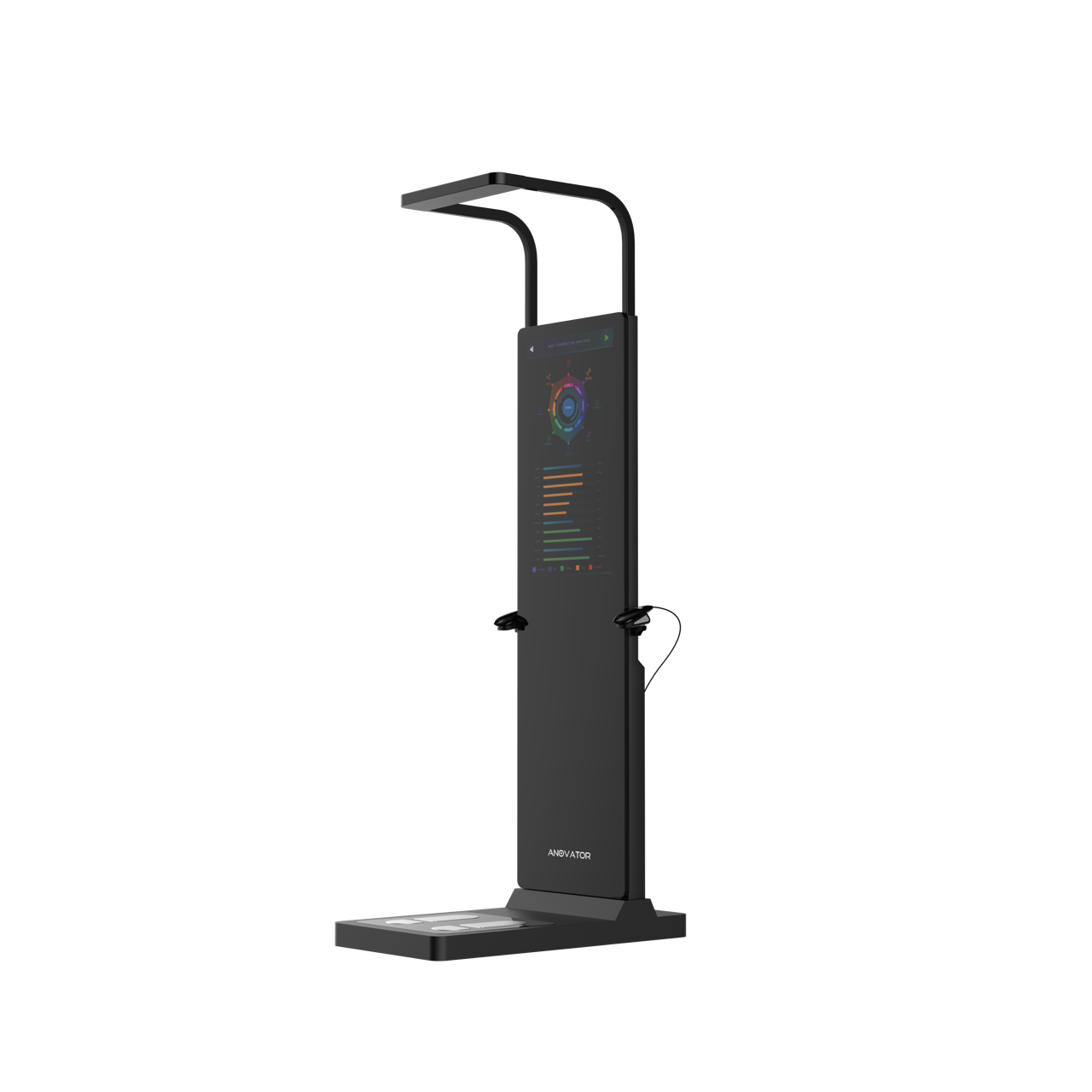

A5 Body Composition Analyzer

Screen Host Product Name Body Composition Analyzer
Model A5
Color Black
Operating System Android 7.1
Camera 1080P
Material Tempered Glass Led Screen + Aluminum Alloy
Size & Weight Product Size Host: 1700mm*460mm
Base: 108mm*480mm*900mm
Bracket: 200*451mm*600
Package Size Host: 1810mm*220mm*610mm
Base: 1010mm*577mm*180mm
Bracket: 570mm*437mm*525mm
Weight 67KG
Display Screen Screen Size 32 Inch
Screen Type 1080*1920 IPS HD Touch
Technical Parameters Measurement methods 8-point contact electrodes, multi-frequency bioelectrical impedance analysis technology
Frequency 20,100 kHz
Electric Current <280uA
Power consumption 60W
Height Measurement High Frequency Ultrasonic Sensing
Spirometry High Precision Air Pressure Sensor
Function parameter Report Phone/Paper Print Report/Web
Voltage Input: AC 220V,50/60Hz
Output:DC 12V,7A
Transmission Port USB2.0/Bluetooth/Wired/Wireless
Height Range 80-200cm
Weight Range 0-200kg
Age Range 3-99 years old
Operating Environment Internet Connection Required
Temperature: 10-40℃, Humidity: 30%-75%
Do not place the device by the window to avoid direct sunlight.
Do not shine direct light on the device screen.
Warranty 2 Years
