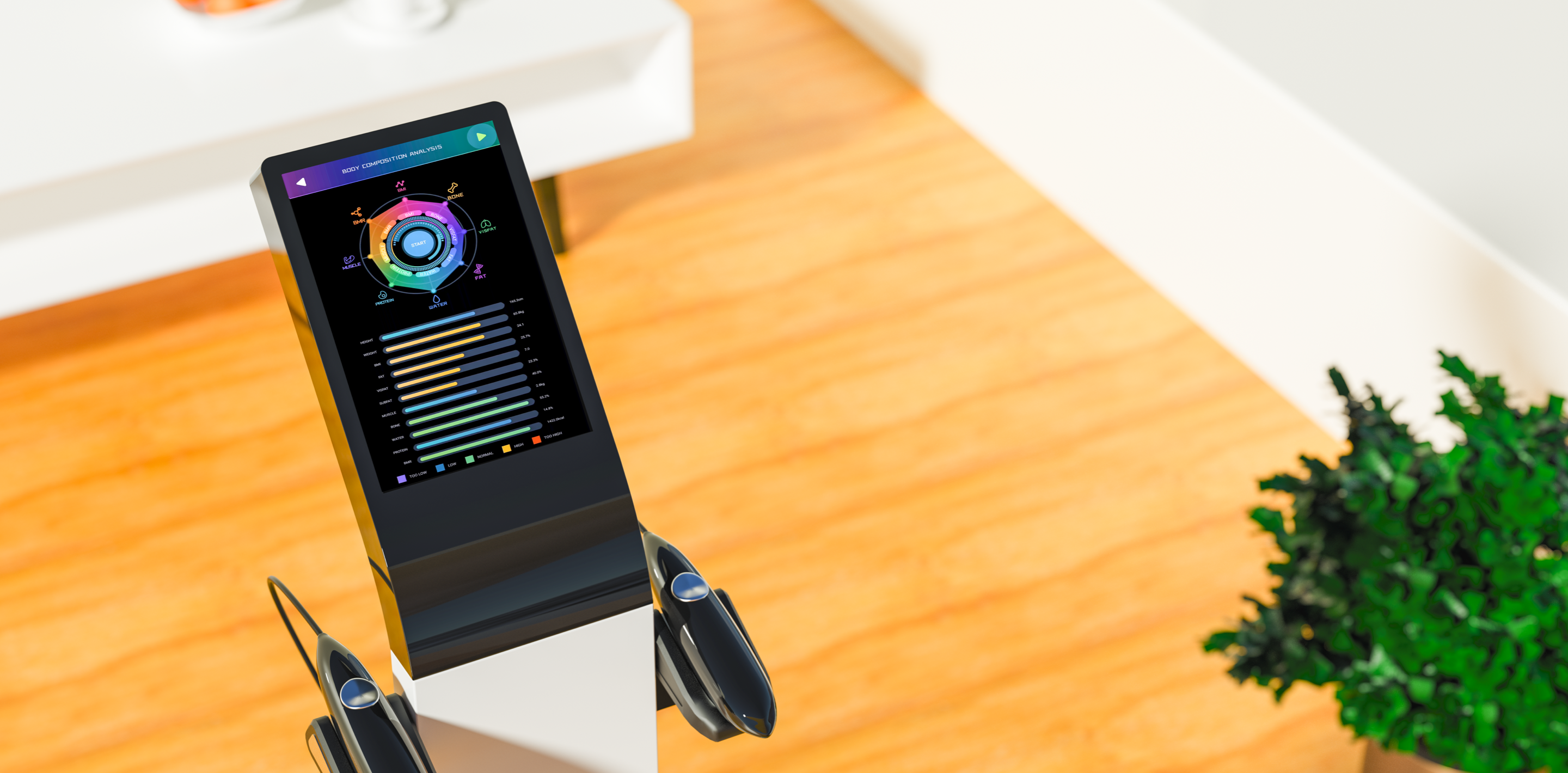

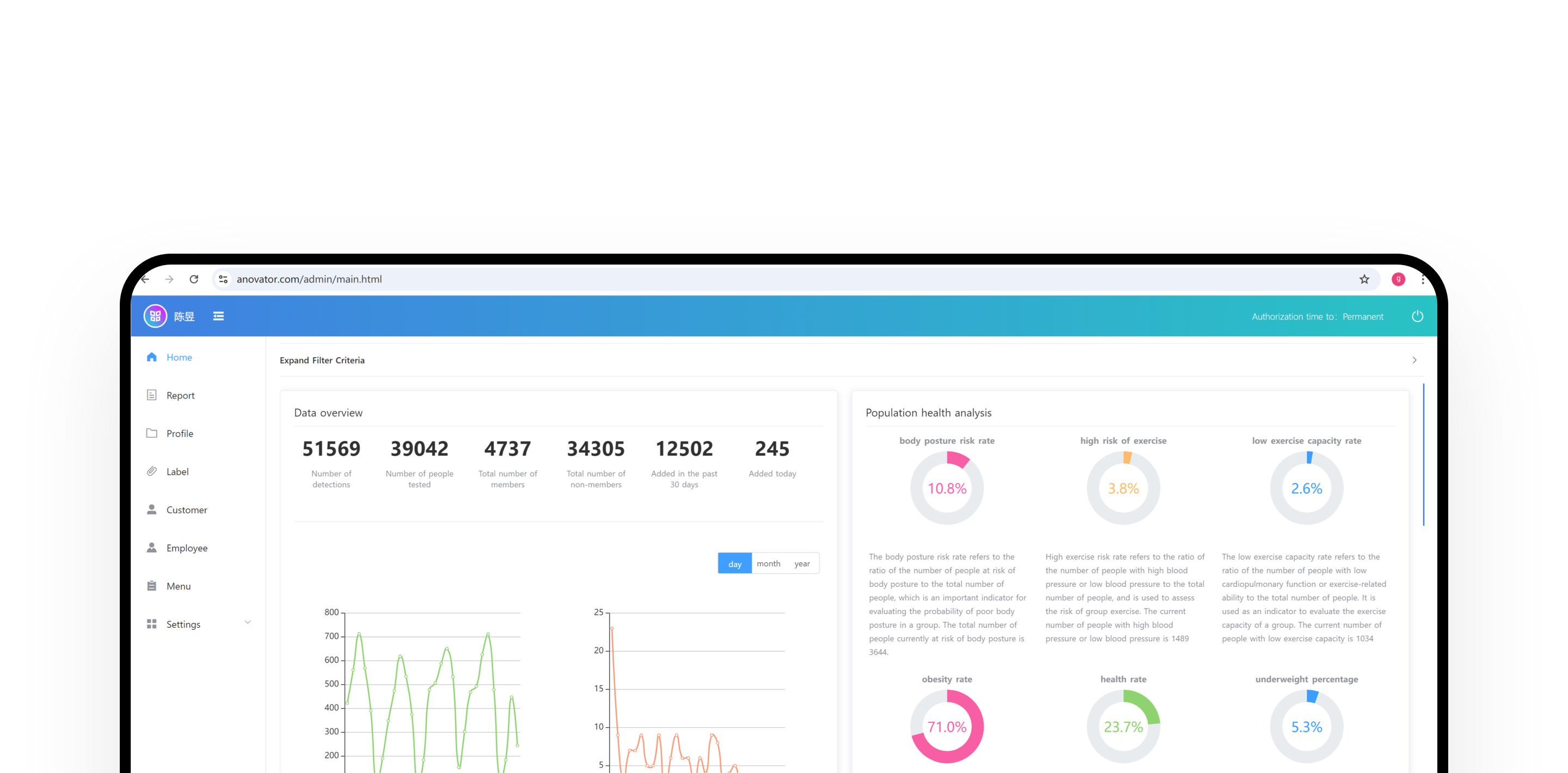

Health data is presented graphically and directly at a glance

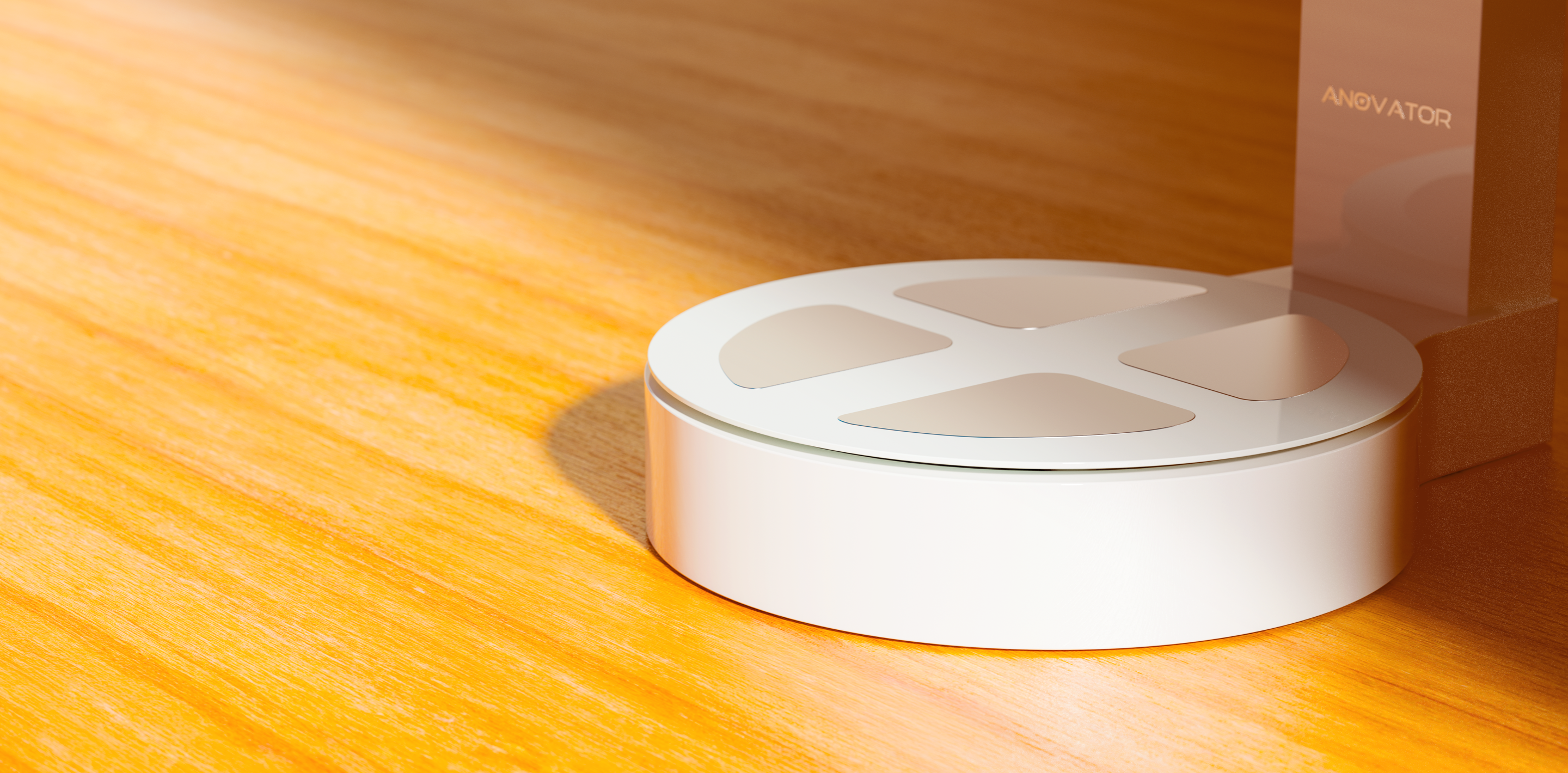

Suspension round corner tempered glass base. Minimalist design.

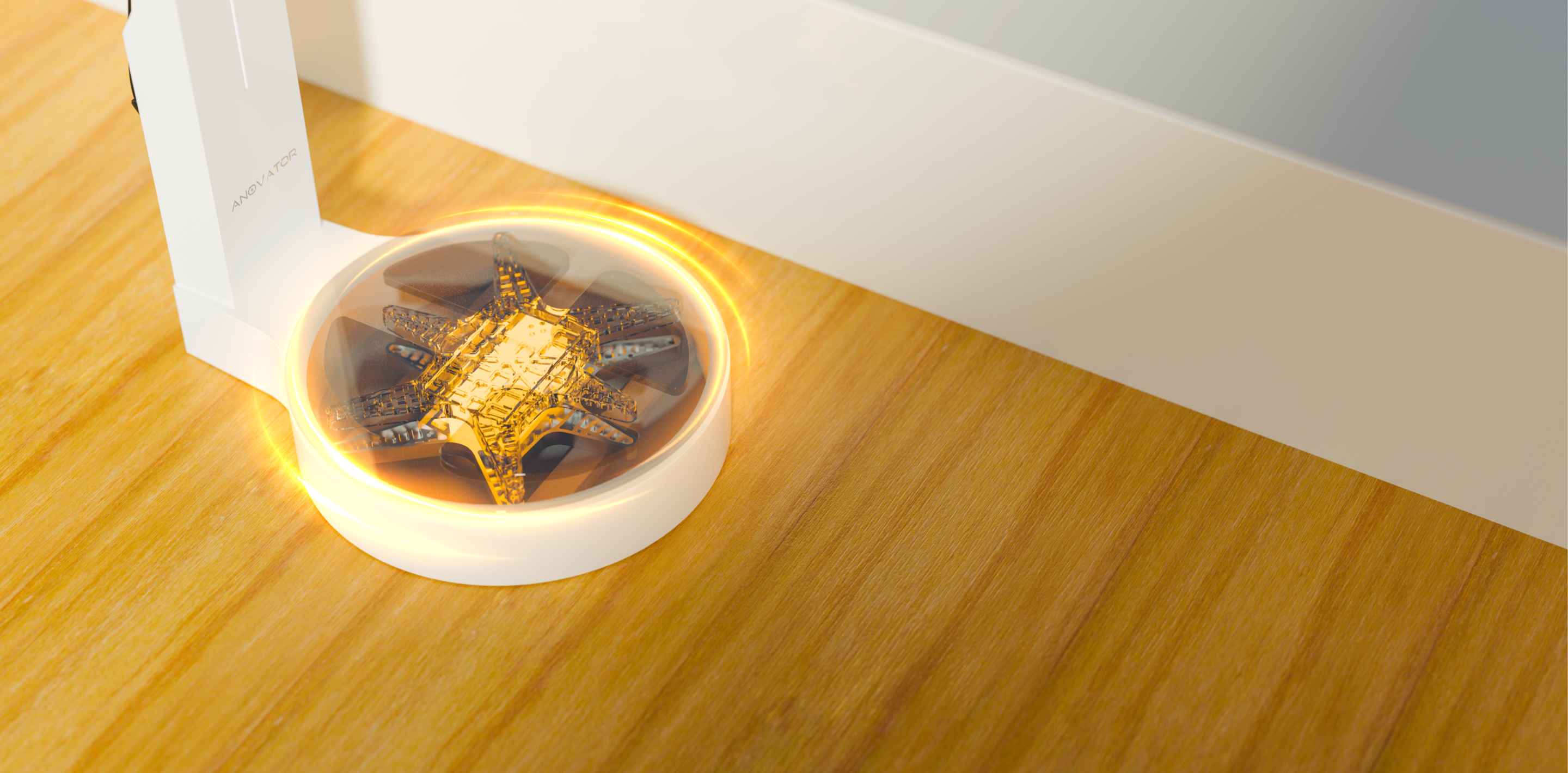

Accurately measure the weight per gram of the human body and the resistivity change per ohm to ensure the accuracy and stability of the measurement results

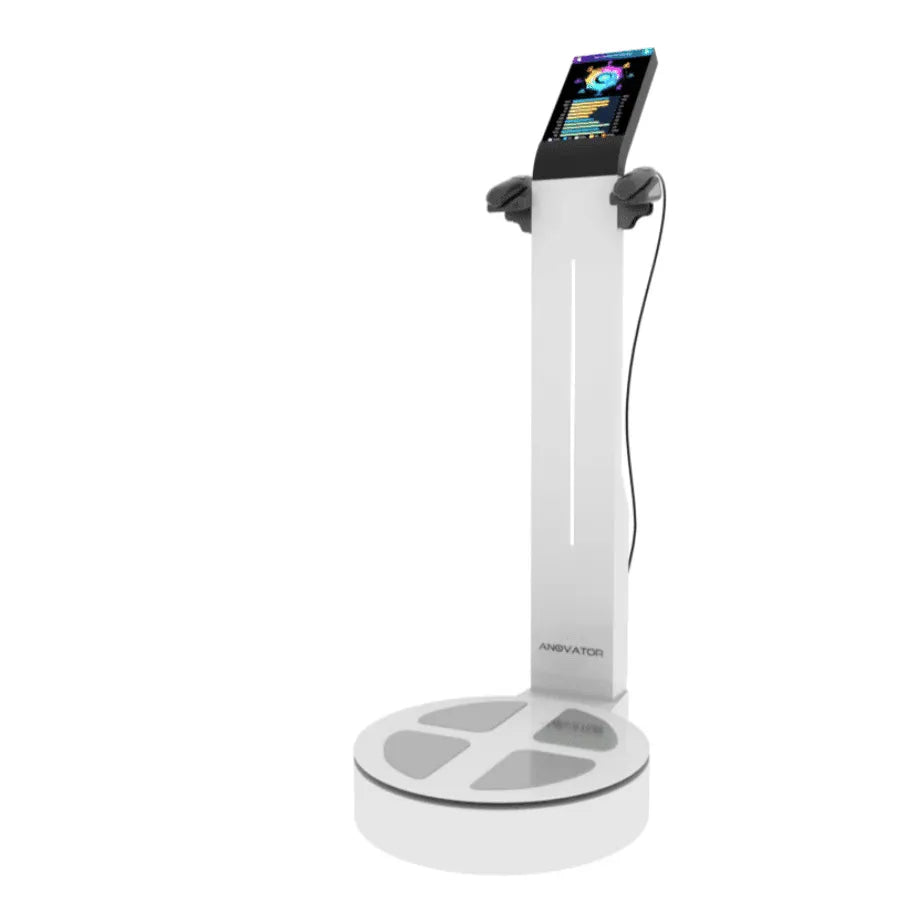

Anovator M0 3D Product View
(Drag to rotate • Double-click for fullscreen)
| User ID Login/Phone Number Login | On Screen Results |
| Printable Results | Handle Grips |
| Weight | BMI |
| Body Fat Percentage | Muscle Mass |
| Visceral Fat Area | Subcutaneous Fat Area |
| Protein Content | Total Body Water |
| Skeletal Muscle | Fat-Free Body |
| Bone Mass | WHR |
| Body Age | BMR(kcal) |
| Obesity Degree (%) | Desirable Weight |
| Weight Control | Fat Control |
| Muscle Control | Segmental Muscle |
| Segmental Body Fat | Body Type Classification |
| Body Posture Analysis | Total Energy Expenditure (kcal) |
| Calorie Consumption (kcal/hour) | Expected Fat Burning (kg) |
| Target Body Fat | Exercise Program Advice |
| Estimated Completion Period | Body Composition History |
| Pervious Data Comparison |
| Screen Host | Product Name | Body Composition Analyzer |
| Model | M0 | |
| Color | White | |
| Operating System | Android 11 | |
| Material | Tempered Glass Led Screen + Aluminum Alloy | |
| Size & Weight | Product Size | Host: 1210mm*750mm*450mm |
| Package Size | 125*755*55cm | |
| Weight | 25KG | |
| Display Screen | Screen Size | 10.1 Inch |
| Screen Type | 800*1280 IPS HD Touch | |
| Technical Parameters | Measurement methods | 8-point contact electrodes, multi-frequency bioelectrical impedance analysis technology |
| Frequency | 20,100 kHz | |
| Electric Current | <280uA | |
| Power consumption | 15W | |
| Function parameter | Report | Phone/Paper Print Report/Web |
| Voltage | Input: AC 220V,50/60Hz Output:DC 12V,7A |
|
| Transmission Port | USB2.0/Bluetooth/Wired/Wireless | |
| Height Range | 80-200cm | |
| Weight Range | 0-200kg | |
| Age Range | 3-99 years old | |
| Operating Environment | Internet Connection Required Temperature: 10-40℃, Humidity: 30%-75% Do not place the device by the window to avoid direct sunlight. Do not shine direct light on the device screen. Do not hit the device hard. |
|
| Save the environment | Temperature: -20~70℃, Humidity: ≤95% |
