The Anovator M3 upports 12 functions, comprehensive detection of body risk, professional version of body composition detection

  • Body composition analysis
  • Athletic capacity Analysis
  • Sp02
  • Sports safety Analysis
  • Body posture Analysis
  • Detection Data Analysis
  • Shoulder Joint Range of motion Evaluation Function
  • Test Report
  • 32  INCH
  • HD SCREEN
  • Immersive body testing
  • IPS HD Touch

    M3 Body

    Black tempered glass

    Minimalist high-end design

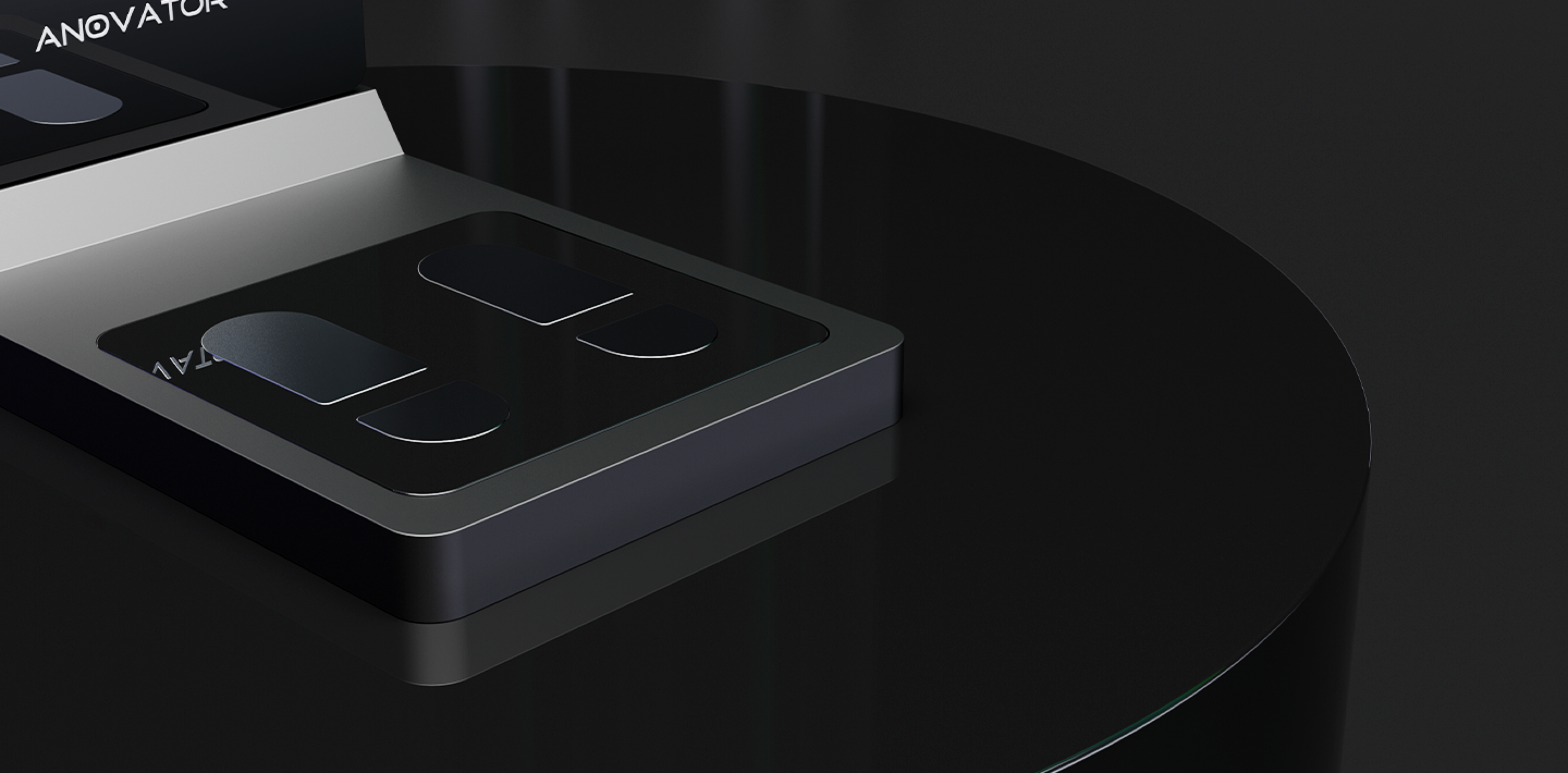

    M3 Base

    Electrode grip 3.0

    Ergonomic design, designed for physical measurement, fully fit the curve of the palm

    M3 Grip

    Industrial high-precision sensor

    Accurately measure the weight per gram of the human body and the resistivity change per ohm to ensure the accuracy and stability of the measurement results

    M3 Sensor

    Administrator Platform

    M3 Platform

    Medical grade Materials



    Blood oxygen

    One minute resting heart rate and blood oxygen concentration are measured to assess the strength of cardiopulmonary function, providing accurate data support for daily training intensity planning.

    Blood pressure measurement

    Medical-grade blood pressure measurement to monitor exercise risk. Eliminate high blood pressure, women's menstrual exercise risk, make exercise more comfortable.

    TECHNICAL SPECIFICATIONS & FEATURES
    What the Machine tells you:

    User ID Login/Phone Number Login On Screen Results
    Printable Results Handle Grips
    Weight BMI
    Body Fat Percentage Muscle Mass
    Visceral Fat Area Subcutaneous Fat Area
    Protein Content Total Body Water
    Skeletal Muscle BMR(kcal)
    Obesity Degree (%) Desirable Weight
    Weight Control Fat Control
    Muscle Control Segmental Muscle
    Segmental Body Fat Body Type Classification
    Fat-Free Body Bone Mass
    WHR Body Age
    SpO2 % Blood Pressure Test
    Exercise Intensity Body Posture Analysis
    Total Energy Expenditure (kcal) Calorie Consumption (kcal/hour)
    Expected Fat Burning (kg) Target Body Fat
    Exercise Program Advice Estimated Completion Period
    Body Composition History Pervious Data Comparison

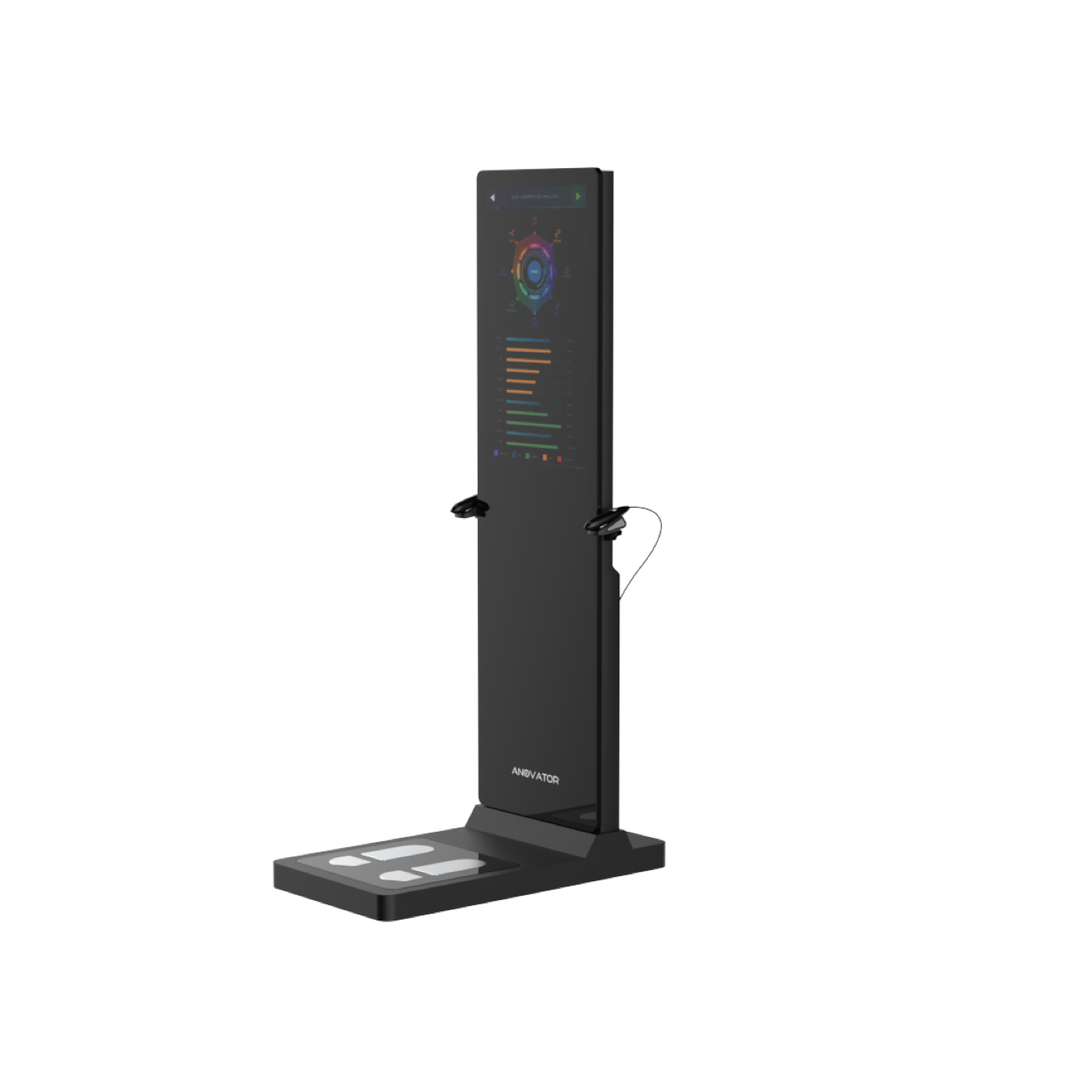

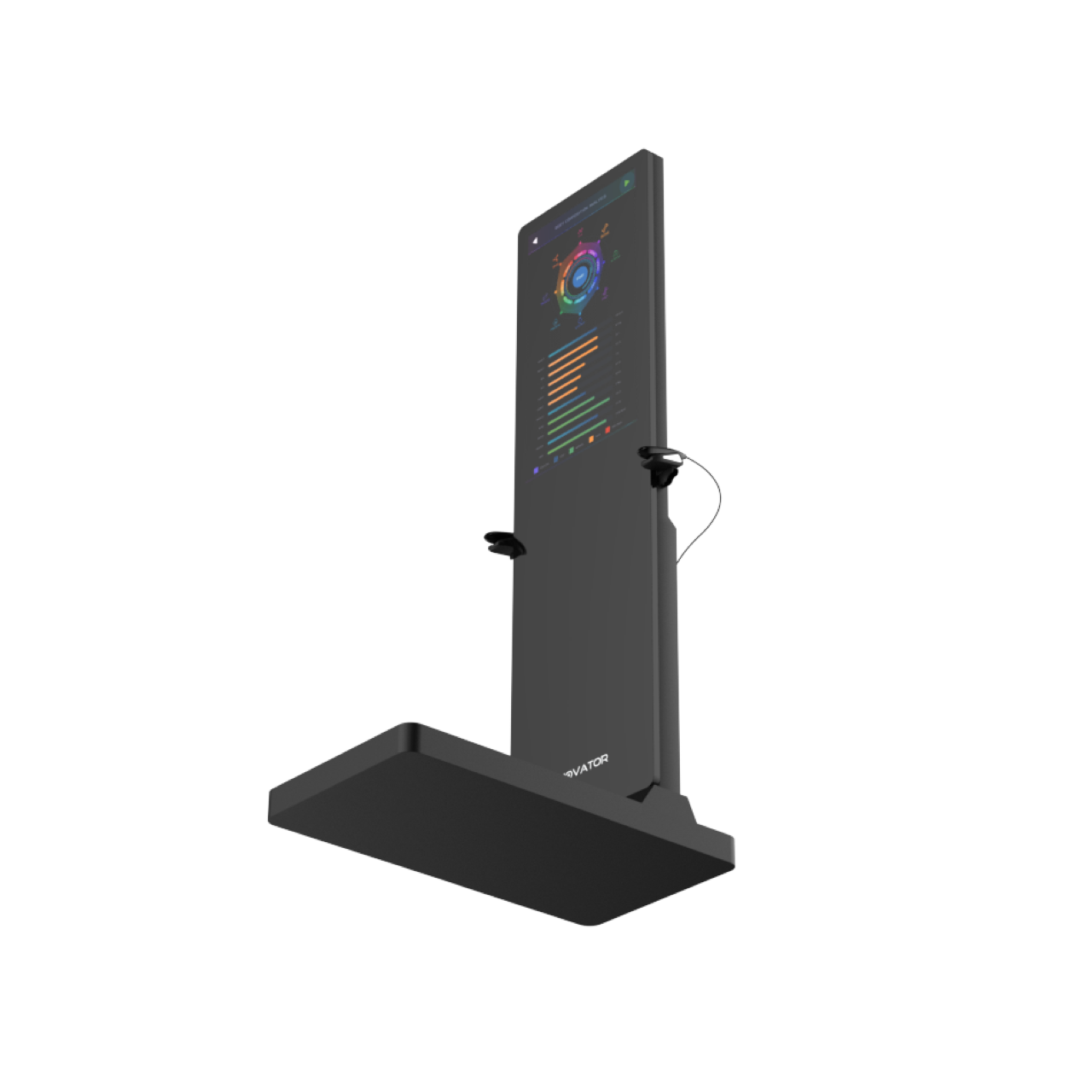

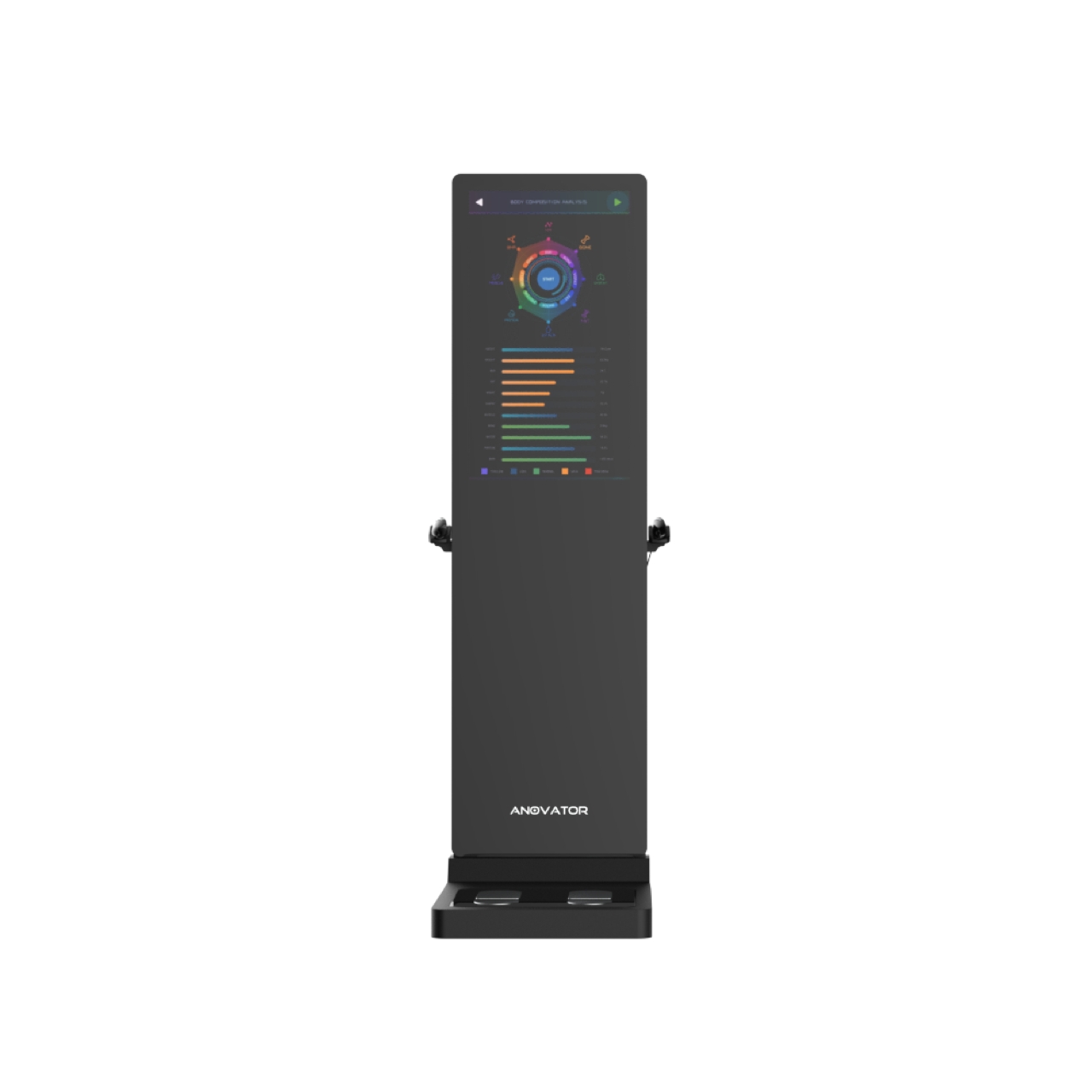

    M3 Body Composition Analyzer
    Screen Host Product Name Body Composition Analyzer
    Model M3
    Color Black
    Operating System Android 7.1
    Camera 1080P
    Material Tempered Glass Led Screen + Aluminum Alloy
    Size & Weight Product Size Host: 1700mm*460mm
    Base: 108mm*480mm*900mm
    Package Size Host: 1810mm*220mm*610mm
    Base: 1010mm*577mm*180mm
    Weight 50KG
    Display Screen Screen Size 32 Inch
    Screen Type 1080*1920 IPS HD Touch
    Technical Parameters Measurement methods 8-point contact electrodes, multi-frequency bioelectrical impedance analysis technology
    Frequency 20,100 kHz
    Electric Current <280uA
    Power consumption 60W
    Function parameter Report Phone/Paper Print Report/Web
    Voltage Input: AC 220V,50/60Hz
    Output:DC 12V,7A
    Transmission Port USB2.0/Bluetooth/Wired/Wireless
    Height Range 80-200cm
    Weight Range 0-200kg
    Age Range 3-99 years old
    Operating Environment Internet Connection Required
    Temperature: 10-40℃, Humidity: 30%-75%
    Do not place the device by the window to avoid direct sunlight.
    Do not shine direct light on the device screen.
    Do not hit the device hard.
    Save the environment Temperature: -20~70℃, Humidity: ≤95%
